ATTENTION!

Not for sale on licensed California vehicles.

It has been almost 30 years since we started shipping our first exhaust brakes. With that many hill and mountain roads experienced, we used the knowledge gained to continue to deliver the best designed exhaust brake for your application. Incorporating BD's exclusive Variable Orifice Technology, BD's solid, offset butterfly, spring loaded cylinder and pressure regulation provides up to 150 retarding horsepower throughout the engine's RPM range - not just at high rpm like some designs that use holes or additional parts and claim it as a better idea. A range of rugged, cast-iron housings for Dodge, Ford, Chevy and motor home applications that incorporate BD's exclusive alumibronze bushing, piston ring-seals and stainless steel butterfly shaft has proven to stand-up under the harsh, high heat conditions of the exhaust environment. BD's butterfly valve and rotating shaft are made of stainless steel to resist corrosion. An air compressor is included in most kits for newer pick-up trucks.

FEATURES

BD's exclusive Variable Orifice Technology
BD's solid, offset butterfly
Spring loaded cylinder
Pressure regulation
Provides up to 150 retarding horsepower throughout the engine's RPM range
Rugged, cast-iron housings
BD's exclusive alumibronze bushing
Piston ring-seals
Stainless steel butterfly shaft
Proven to stand-up under the harsh, high heat conditions of the exhaust environment
All mounting hardware are made of corrosion resistant stainless steel
There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.

INSTALL TIME

3 Hours

WARRANTY

Parts

24-Months
24,000 Miles

Labour

12-Months
12,000 miles

NOTE

1989-1993 models require 4-inch exhaust for installation. Example: Flo-Pro 847 or equivalent
1989-1993 trucks must purchase part number 1300535 throttle switch bracket separately
1989-1998 12-valve engines require 1030060 exhaust valve spring kit
1996-1998 "California" spec engines with EGR require 1030030 Kit
Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes
Not for sale on licensed California vehicles
Trucks with automatic transmissions are suggested to also install an AutoLoc for electronic controlled lock-converters, or, a lower stall converter for manual or no lock-up converters

EMISSIONS

This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)

[/shortdesc][product_details_title]Exhaust Brake | 5,9L Cummins 1989-1998[/product_details_title][product_line]EXHAUST BRAKES[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]BD brake, Dodge, 5.9L Cummins 89-93, 5.9L Cummins 94-98 12 Valve, Exhaust Brakes, Mechanical Exhaust Brakes, Exhaust Brake - 1989-1998 Dodge 5.9L Cummins 60psi no-APPS 4-inch Remote Mount / Vacuum Actuated[/product_meta_keywords]

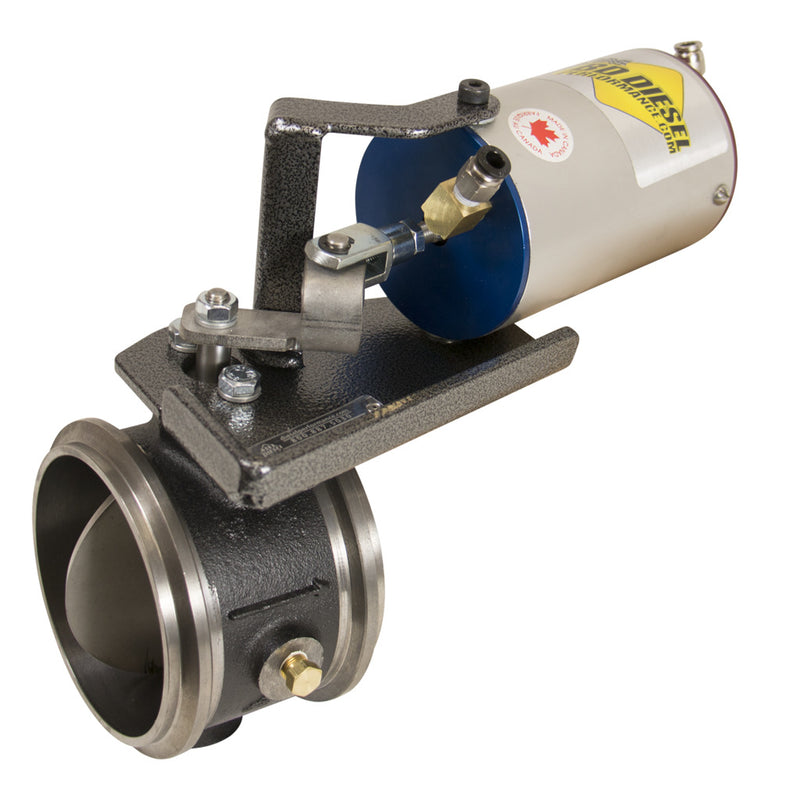

Exhaust Brake No APPS Remote Mount Vacuum Controlled 60psi 4inch Exhaust Dodge 12-valve 5.9L Cummins 1989-1998

$1,441.95 USD
