ATTENTION!

Not for sale on licensed California vehicles.

It has been almost 30 years since we started shipping our first exhaust brakes. With that many hill and mountain roads experienced, we used the knowledge gained to continue to deliver the best designed exhaust brake for your application. Incorporating BD's exclusive Variable Orifice Technology, BD's solid, offset butterfly, spring loaded cylinder and pressure regulation provides up to 150 retarding horsepower throughout the engine's RPM range - not just at high rpm like some designs that use holes or additional parts and claim it as a better idea. A range of rugged, cast-iron housings for Dodge, Ford, Chevy and motor home applications that incorporate BD's exclusive alumibronze bushing, piston ring-seals and stainless steel butterfly shaft has proven to stand-up under the harsh, high heat conditions of the exhaust environment. BD's butterfly valve and rotating shaft are made of stainless steel to resist corrosion. An air compressor is included in most kits for newer pick-up trucks.

FEATURES

Provides up to 150 retarding horsepower throughout the engine's RPM range
BD's exclusive Variable Orifice Technology
Adjustable pressure regulation
Pneumatic spring loaded cylinder
BD's solid, offset butterfly
Rugged, cast-iron housings
BD's exclusive alumibronze bushing
Piston ring-seals
Stainless steel butterfly shaft
Proven to stand-up under the harsh, high heat conditions of the exhaust environment
All mounting hardware provided
There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.

INSTALL TIME

4 Hours

WARRANTY

Parts

24-Months
24,000 Miles

Labour

12-Months
12,000 miles

NOTE

Brake controls connect to throttle pedal with Accelerator Pedal Position Sensor (APPS). Vehicles without APPS will require 1300420 micro switch and custom bracket will have to be made.
Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes
May not work with engines that have OEM Variable Vane (VGT) turbos such as Cummins ISX. Will work with aftermarket non-VGT turbos.
Not for sale on licensed California vehicles

EMISSIONS

This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)

[/shortdesc][product_line]EXHAUST BRAKES[/product_line][product_manuals]Enable[/product_manuals][product_meta_keywords]1023121, 1023126, 1027125, 1027148, 1027168, air compressor, BD brake, engine brake, exhaust brake, pacbrake, Heavy Duty, Other, Ford Truck, Motorhome Diesel Power, Navistar, Exhaust Brakes, Mechanical Exhaust Brakes, Exhaust Brake - Universal 3.0-Inch Remote Mount Air Actuated[/product_meta_keywords]

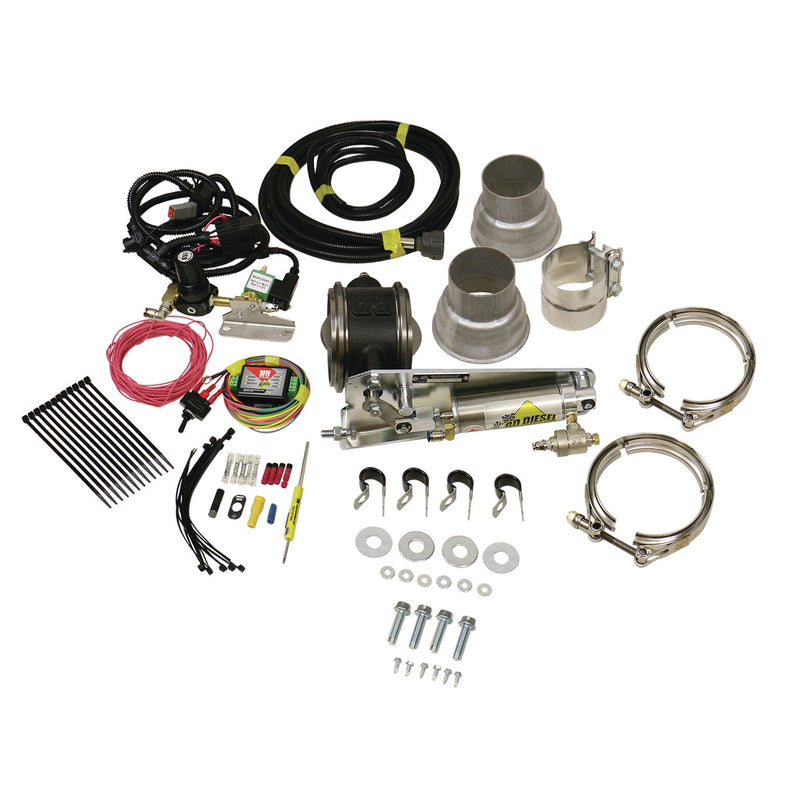

Exhaust Brake - Universal Install

$1,441.95 USD

SELECT PRODUCT OPTIONS
