Under high torque applications, the bolts between the torque converter and flex plate can slip. Eliminate this failure with twice the clamping load. The BD 12-bolt flexplate, which includes BD's Diamond Bite Shims, maximize torque holding capacity. The BD Flex Plate is proven to handle up to 3500 lb-ft of torque. The matching 12-bolt Hi5 torque converter is required to utilize all 12 bolts. A standard 6-bolt torque converters can still be installed using only 6 bolts.

FEATURES

12 bolt holes to help prevent shearing
Meets SFI 29.3 Approval!
Reliably handle up to 3,500 lb-ft of torque
Twice the material of the stock flex plate
Forged billet
Precision-balanced
Black Oxide coated to resist corrosion and prevents hydrogen embrittlement caused by common zinc plating
Allows axial thrust unlike solid flywheel conversions
Fits any OEM or aftermarket torque converter
Direct, bolt-in replacement for the stock unit
BD Diamond Bite Shims included

INSTALL TIME

7 Hours

WARRANTY

Parts

36-Months
150,000 Miles

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

VIDEOS

Diamond Bite Shims

[/shortdesc][product_line]FLEX PLATES[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]12 bolt flexplate, 12-bolt flexplate, bd christmas, race flex plate, race flexplate, sfi 29.3 flex plate, sfi 29.3 flexplate, sled pulling flex plate, sled pulling flexplate, Dodge, 5.9L Cummins 03-04, 5.9L Cummins 04.5-07, 5.9L Cummins 94-98 12 Valve, 5.9L Cummins 98.5-02 24-Valve, Transmission, Flex Plates, Torque Converters, BD HI5 12-Bolt Flexplate - Dodge RAM 1994-2007 47RE/48RE[/product_meta_keywords]

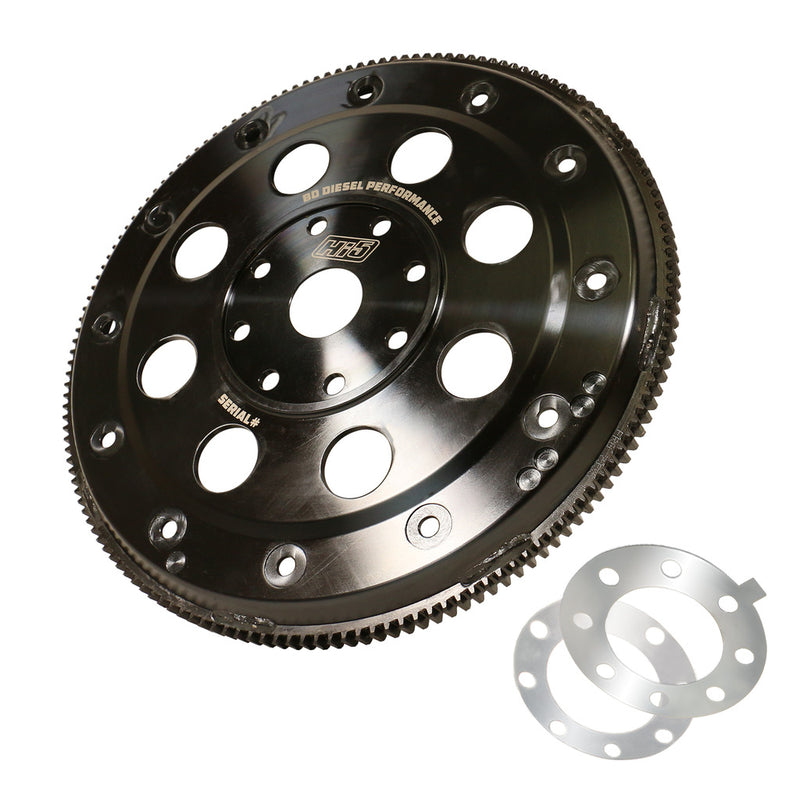

HI5 12-Bolt Flexplate Dodge 5.9L Cummins 47RH/47RH/48RE 1994-2007

$514.95 USD
