The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!

FEATURES

Increase the durability of your drivetrain
Stock thrust bushings replaced with roller Torrington bearings
Every transmission is tested on a dyno
Upgraded Valvebody
Increased line pressure to 190-200psi
No shuttle shifting problems
Drilled intermediate shaft for increased lubrication
Modified manual valve for lube in all positions
Clutch Count: OD 6
Clutch Count: OD DIRECT 10
Clutch Count: FORWARD 5
Clutch Count: DIRECT 6
High temp/energy Raybestos band
Upgraded governor pressure transducer (47RE/48RE)
Upgraded governor solenoid - Twice the burst pressure than stock
Upgraded 48RE sunshell
Cooler line case saver in every transmission
BD auxiliary full flow filter kit for extra protection
BD rigid aluminum heavy duty transmission pan
Pan heat-dissipating fins keep temperature down
Magnetic drain plug
Pan adds 2qt extra oil capacity
Not warranted for Race or Sled Pull use
Available with Billet input shaft

INSTALL TIME

9 Hours

WARRANTY

Parts

36-Months
150,000 Miles

Labour

12-Months
24,000 miles

Note

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

NOTE

BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

VIDEOS

How Transmissions are Built

Transmission Shop Walkthrough

Towmaster Transmissions Explained

[/shortdesc][product_details_title]Dodge 47RE Transmission 2000-2002 4WD[/product_details_title][product_line]TRANSMISSIONS[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]1064184K, 1064184KF, bd transmission, bd trany, Dodge, 5.9L Cummins 98.5-02 24-Valve, Transmission, Automatic Transmissions, BD TowMaster Dodge 47RE Transmission - 2000-2002 4wd[/product_meta_keywords]

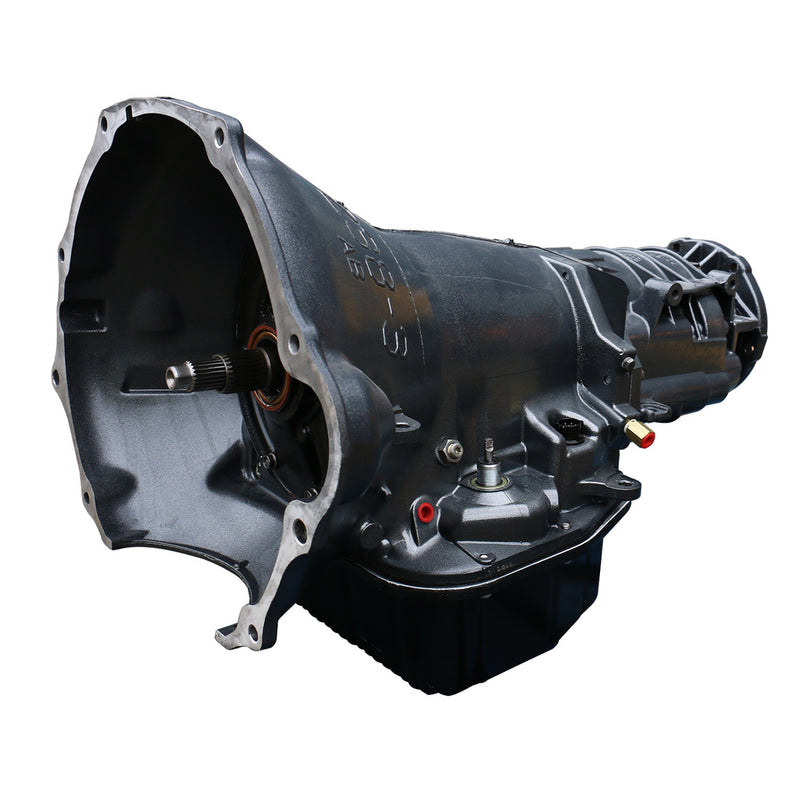

TowMaster Dodge 47RE Transmission 2000-2002

$4,035.00 USD
