When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

FEATURES

TRANSMISSION:

Upgraded Valvebody
Upgraded governor solenoid - Twice the burst pressure than stock
Upgraded governor pressure transducer (47RE/48RE)
Increased line pressure to 190-200psi
No shuttle shifting problems
Modified manual valve for lube in all positions
Stock thrust bushings replaced with roller Torrington bearings
Clutch Count: DIRECT 6
Clutch Count: FORWARD 5
Clutch Count: OD 6
Clutch Count: OD DIRECT 10
High temp/energy Raybestos band
Upgraded 48RE sunshell
Billet band lever
Billet barrel strut
Drilled intermediate shaft for increased lubrication
BD rigid aluminum heavy duty transmission pan
Pan adds 2qt extra oil capacity
Pan heat-dissipating fins keep temperature down
Magnetic drain plug
Increase the durability of your drivetrain
BD auxiliary full flow filter kit for extra protection
Cooler line case saver in every transmission
Every transmission is tested on a dyno
Not warranted for Race or Sled Pull use

TORQUE CONVERTOR:

Enhanced Stall - Street/Towing applications
Torque multiplying cast aluminum stators
Lower rpm response than the stock converter
More efficient operation
Less heat and better fuel economy
Stamp-forged steel front cover
Furnace-brazed fins
Up to triple the amount of lock-up clutch material

INSTALL TIME

9 Hours

WARRANTY

Parts

36-Months
150,000 Miles

Labour

12-Months
24,000 miles

Note

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

NOTE

1997 2wd with speed sensor & speedo head use 1064162SS or 1064162BM, if just a speed senor then 1064172SS or 1064172BM

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

VIDEOS

How Transmissions are Built

Transmission Shop Walkthrough

Towmaster Transmissions Explained

[/shortdesc][product_line]TRANSMISSIONS[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]1064172K, 1064172KF, bd transmission, bd trany, Dodge, 5.9L Cummins 94-98 12 Valve, 5.9L Cummins 98.5-02 24-Valve, Transmission, Auto Trans & Converter Packages, BD TowMaster Dodge 47RE Transmission & Converter Package - 1997-1999 2wd w/Speed Sensor Only (No Speedo Head)[/product_meta_keywords]

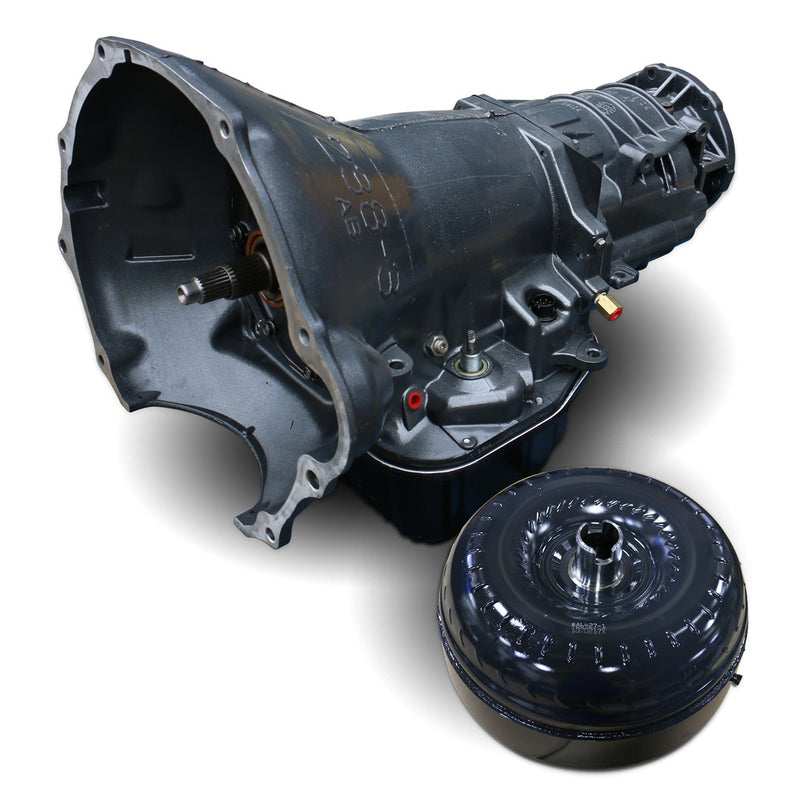

TowMaster Dodge 47RE Transmission & Converter Package - 1997-1999 2wd w/Speed Sensor Only (No Speedo Head)

$5,045.00 USD
