[shortdesc]

BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Every BD 68RFE is also build to withstand 250psi of line pressure for unrivaled torque holding capacity.

FEATURES

Hard anodized valve body and new solenoid pack installed in every unit
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
Heavy duty cam & roller design low reverse one way clutch
New 4C billet spring retainer
Steel girdle added to 2C piston to allow for more clutches and broader apply area
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Over Drive clutches 33% increase & 2C clutches 33% increase
Custom Big Stack overdrive shaft
BD reinforced accumulator plate
TCC limit valve machined and sleeved to address high wear area with in pump
BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
Available with Billet input shaft

INSTALL TIME

9 Hours

WARRANTY

Parts

36-Months
150,000 Miles

Labour

12-Months
24,000 miles

Note

No Race abuse covered

NOTE

BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

VIDEOS

68rfe Explained! Valve Body

68rfe Coming to Life

How Transmissions are Built

How To: 68REF Relearn

Transmission Shop Walkthrough

68RFE Transmission Relearn

Towmaster Transmissions Explained

[/shortdesc][product_details_title]Dodge 68RFE Transmission | 2007.5-2018 4wd[/product_details_title][product_line]TRANSMISSIONS[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]1064244, 1064254, bd big stack transmission, bd big stack trany, bd transmission, bd trany, big stack transmission, big stack trany, Dodge, 6.7L Cummins 07.5-12, 6.7L Cummins 13-18, Transmission, Automatic Transmissions, BD TowMaster Dodge 68RFE Transmission - 2007.5-2018 4wd[/product_meta_keywords]

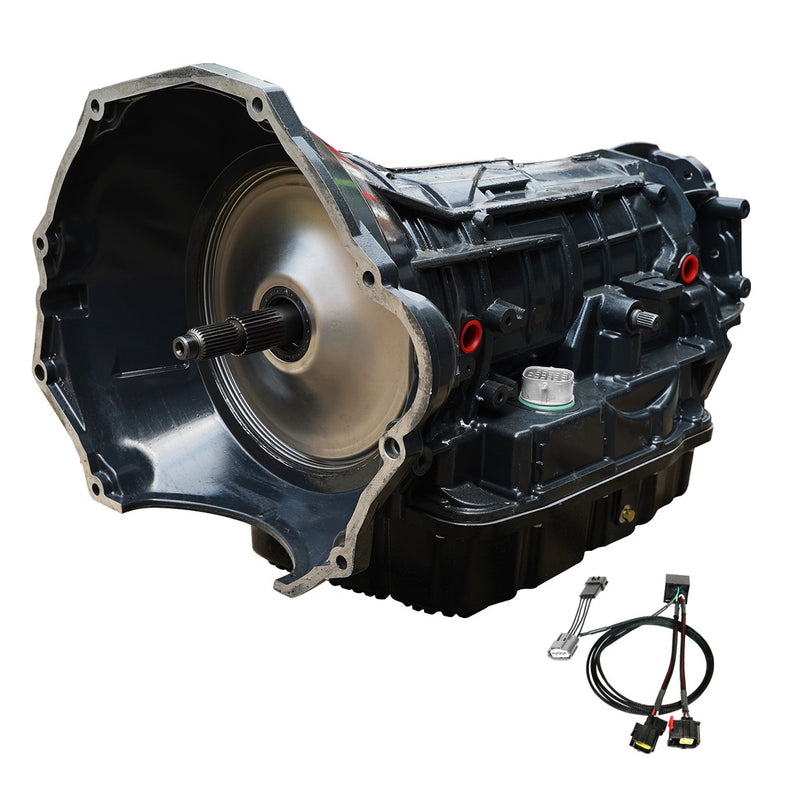

TowMaster Dodge 68RFE Transmission 2007.5-2018

$5,515.00 USD

SELECT PRODUCT OPTIONS
