The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!

FEATURES

Increase the durability of your drivetrain
BD aluminum HD deep pan, increases oil capacity by 6qt
Re-calibrated accumulator body
Quicker, firmer shifts
Full shift kit with line mod valve to increase pressures
Increased pressure to converter
Added lube circuits to OD planet
Added lube and support to output and intermediate shafts
Drilled and tapped direct and intermediate feeds to prevent leaks at case
Upgraded OD snap ring
Machined center support
Reworked front pump
Fully rollerized geartrain
Clutch Count: COAST CLUTCH 2
Clutch Count: FORWARD 5 (25% increase over stock)
Clutch Count: DIRECT 5
Clutch Count: LOW REVERSE 7 (17% increase over stock)
Clutch Count: INTERMEDIATE 4 (33% increase over stock)
Clutch Count: OVERDRIVE 4 (33% increase over stock)
Each transmission is dyno tested
1990-2003 include auxiliary frame mounted full flow filter kit
OEM equipt transmission mounted PTO

INSTALL TIME

5 Hours

WARRANTY

Parts

36-Months
150,000 Miles

Labour

12-Months
24,000 miles

Note

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

NOTE

BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

VIDEOS

How Transmissions are Built

Transmission Shop Walkthrough

Towmaster Transmissions Explained

[/shortdesc][product_line]TRANSMISSIONS[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]1064442PTO, bd transmission, bd trany, Ford, 7.3L Powerstroke 99-03, Transmission, Automatic Transmissions, Transmission Stage 4 Kit - 1999-2003 Ford 7.3L PowerStroke 4R100 2wd PTO[/product_meta_keywords]

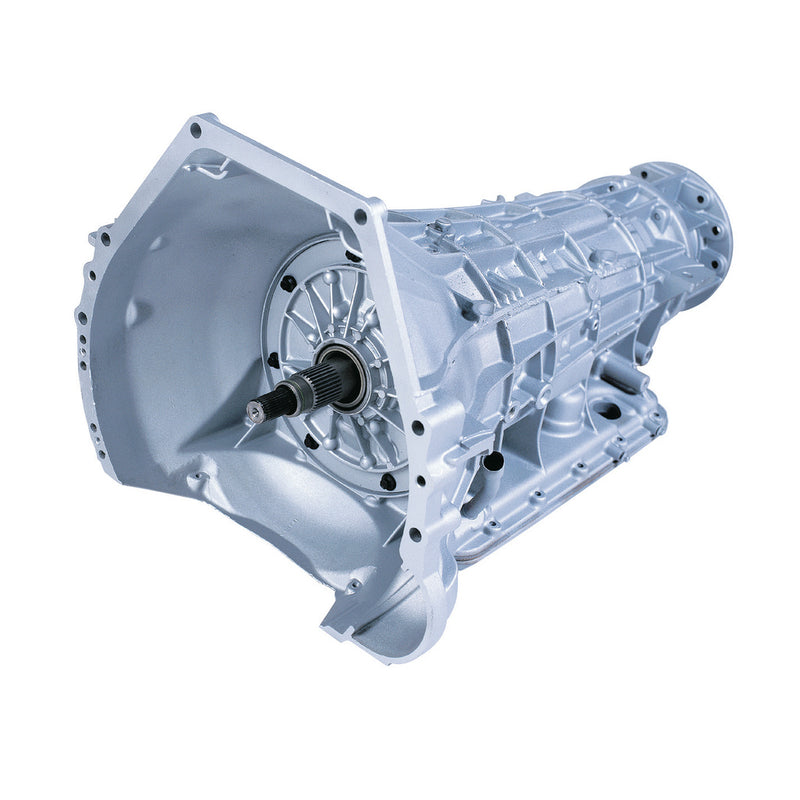

TowMaster Ford 4R100 Transmission - 1999-2003 2wd PTO

$4,350.00 USD
