When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

FEATURES

TRANSMISSION:

Increase the durability of your drivetrain
BD aluminum HD deep pan, increases oil capacity by 6qt
Re-calibrated accumulator body
Quicker, firmer shifts
Full shift kit with line mod valve to increase pressures
Increased pressure to converter
Added lube circuits to OD planet
Added lube and support to output and intermediate shafts
Drilled and tapped direct and intermediate feeds to prevent leaks at case
Upgraded OD snap ring
Machined center support
Reworked front pump
Fully rollerized geartrain
Clutch Count: COAST CLUTCH 2
Clutch Count: FORWARD 5 (25% increase over stock)
Clutch Count: DIRECT 5
Clutch Count: LOW REVERSE 7 (17% increase over stock)
Clutch Count: INTERMEDIATE 4 (33% increase over stock)
Clutch Count: OVERDRIVE 4 (33% increase over stock)
Each transmission is dyno tested
1990-2003 include auxiliary frame mounted full flow filter kit

TORQUE CONVERTOR:

Enhanced Stall - Street/Towing applications
Torque multiplying cast aluminum stators
Lower rpm response than the stock converter
More efficient operation
Less heat and better fuel economy
Stamp-forged steel front cover
Furnace-brazed fins
Up to triple the amount of lock-up clutch material

INSTALL TIME

7 Hours

WARRANTY

Parts

36-Months
150,000 Miles

Labour

12-Months
24,000 miles

Note

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

NOTE

Does not have PTO provision
Excursion requires use of factory style transmission pan. BD Deep Pan will interfere with factory crossmember

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

VIDEOS

How Transmissions are Built

Transmission Shop Walkthrough

Towmaster Transmissions Explained

[/shortdesc][product_line]TRANSMISSIONS[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]1030224, 1064444, bd transmission, bd trany, Ford, 7.3L Powerstroke 99-03, Transmission, Auto Trans & Converter Packages, BD TowMaster Ford 4R100 Transmission & Converter Package - 1999-2003 4wd[/product_meta_keywords]

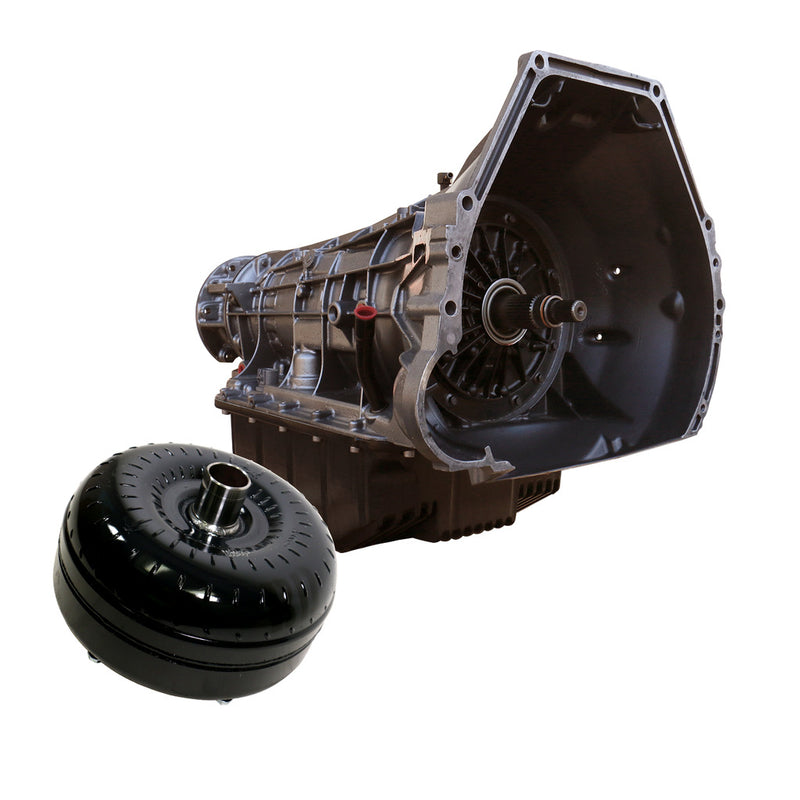

TowMaster Ford 4R100 Transmission & Converter Package - 1999-2003 4wd

$5,045.00 USD
