HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

FEATURES

Cooler Assembly Only
Double stacked cores deliver over 40,000 BTU/HR of cooling
Over 350% temperature drop versus the factory system
136% better temperature drop than XTRUDED single core kit
Motor is IP54 with 65% duty cycle

WARRANTY

Parts

12-Months
24,000 Miles

NOTE

Exceeding the duty cycle may result in voiding the warranty
Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

VIDEOS

Alligator Performance Product Review on BD Diesel Double Stack Trans Coolers

[/shortdesc][product_line]TRANS COOLERS[/product_line][product_meta_keywords]1300601-5.5-DS, Chevy/GM, Dodge, Ford, 5.9L Cummins 03-04, 5.9L Cummins 04.5-07, 5.9L Cummins 94-98 12 Valve, 5.9L Cummins 98.5-02 24-Valve, 6.0L Powerstroke 03-07, 6.4L Powerstroke 08-10, 6.7L Cummins 07.5-12, 6.7L Cummins 13-18, 6.7L Cummins 19-up, 6.7L Powerstroke 11-16, 6.7L Powerstroke 17-up, 7.3L Powerstroke 99-03, Duramax 6.6L 01-04 LB7, Duramax 6.6L 04.5-06 LLY, Duramax 6.6L 06-07 LBZ, Duramax 6.6L 07.5-10 LMM, Duramax 6.6L 11-16 LML-LGH, Duramax 6.6L 17-up L5P, Transmission, Trans Coolers, Xtrude Trans Cooler - Double Stacked (No Install Kit)[/product_meta_keywords]

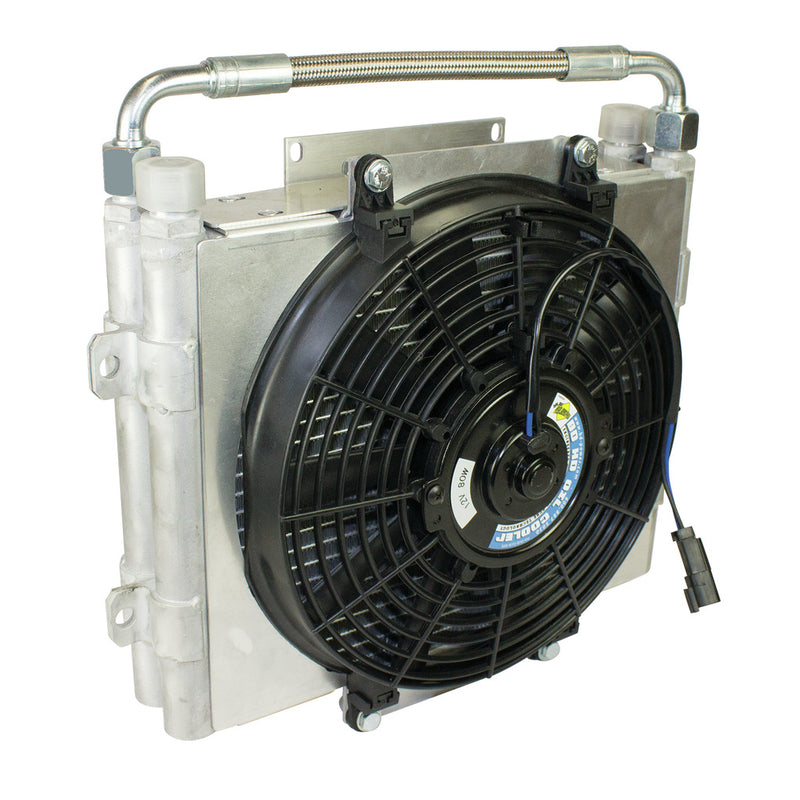

Xtrude Trans Cooler Double Stacked (No Install Kit)

$687.95 USD

SELECT PRODUCT OPTIONS
