When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

FEATURES

TRANSMISSION:

Hard anodized valve body and new solenoid pack installed in every unit
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
Heavy duty cam & roller design low reverse one way clutch
New 4C billet spring retainer
Steel girdle added to 2C piston to allow for more clutches and broader apply area
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Over Drive clutches 33% increase & 2C clutches 33% increase
Custom Big Stack overdrive shaft
BD reinforced accumulator plate
BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.

PROFORCE 3D TORQUE CONVERTER:

Triple Disc
HD springs absorb shock of engagement
Stamp forged 1-piece cover
Eliminates warpage from clutch heat
Taller cover can be rebuilt more often
Trapezoid teeth design
Engineered tighter tolerances
Self-centering trapezoid teeth design increases contact decreases wear and chatter
Thrust bearings - not plastic thrust washers
Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
Cast stator designs maximizes torque
New sprag components ensure long term durability
Furnaced brazed turbine fins for improved fluid coupling efficiency
Reduced overall weight by 12lbs compared to competitors

PROFORCE TORQUE CONVERTER:

Enhanced Stall - Street/Towing applications
Enhanced Stall - Street/Towing applications
Torque multiplying cast aluminum stators
Lower rpm response than the stock converter
More efficient operation
Less heat and better fuel economy
Stamp-forged steel front cover
Furnace-brazed fins

INSTALL TIME

9 Hours

WARRANTY

Parts

36-Months
150,000 Miles

Labour

12-Months
24,000 miles

Note

No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

NOTE

Special tuning required for 2019-up applications for increased line pressure

EMISSIONS

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

VIDEOS

68rfe Explained! Valve Body

68rfe Coming to Life

How Transmissions are Built

How To: 68REF Relearn

BD Diesel 68RFE Big Stack Explained

Transmission Shop Walkthrough

68RFE Transmission Relearn

Towmaster Transmissions Explained

[/shortdesc][product_details_title]68RFE TowMaster Trans & Converter | Ram 2019+[/product_details_title][product_line]TRANSMISSIONS[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]106429, 1070219LX, 1070219X, 1071219LX, 1071219X, 2019 68rfe, 2020 68rfe, 6.7 transmission, 68rfe converter, 68rfe convertor, 68rfe torque converter, 68rfe torque convertor, bd big stack transmission, bd big stack trany, bd transmission, bd trany, big stack transmission, big stack trany, diesel torque converter, diesel torque convertor, dodge torque converter, dodge torque convertor, torque converter, torque convertor, Dodge, 6.7L Cummins 19-up, Transmission, Auto Trans & Converter Packages, BD TowMaster Dodge 68RFE Transmission & Converter Package - 2019-2024 4wd[/product_meta_keywords]

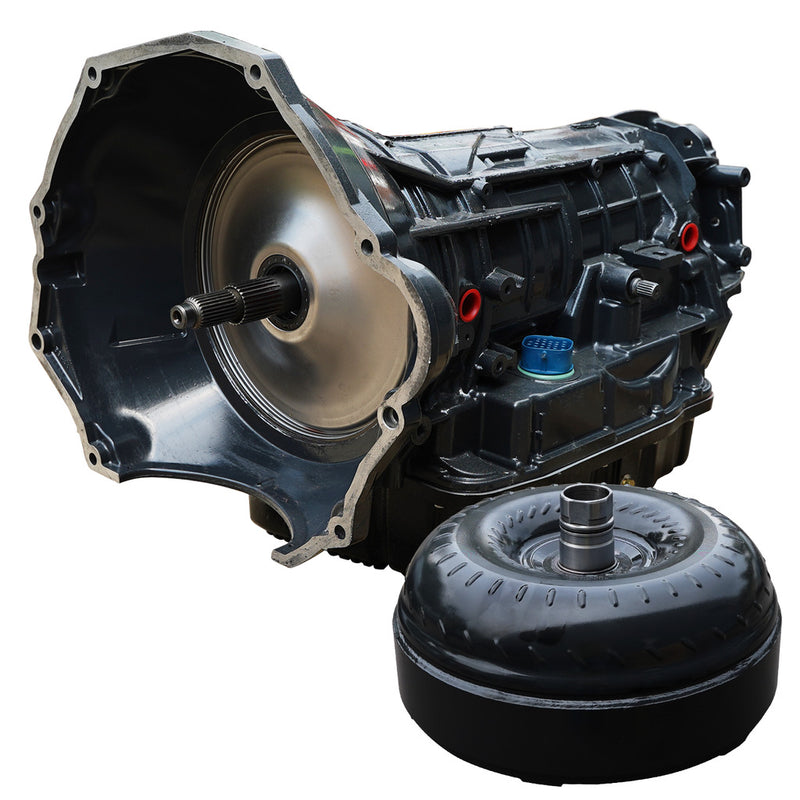

TowMaster Dodge 68RFE Transmission & Converter Package 2019-2024

$6,530.00 USD
